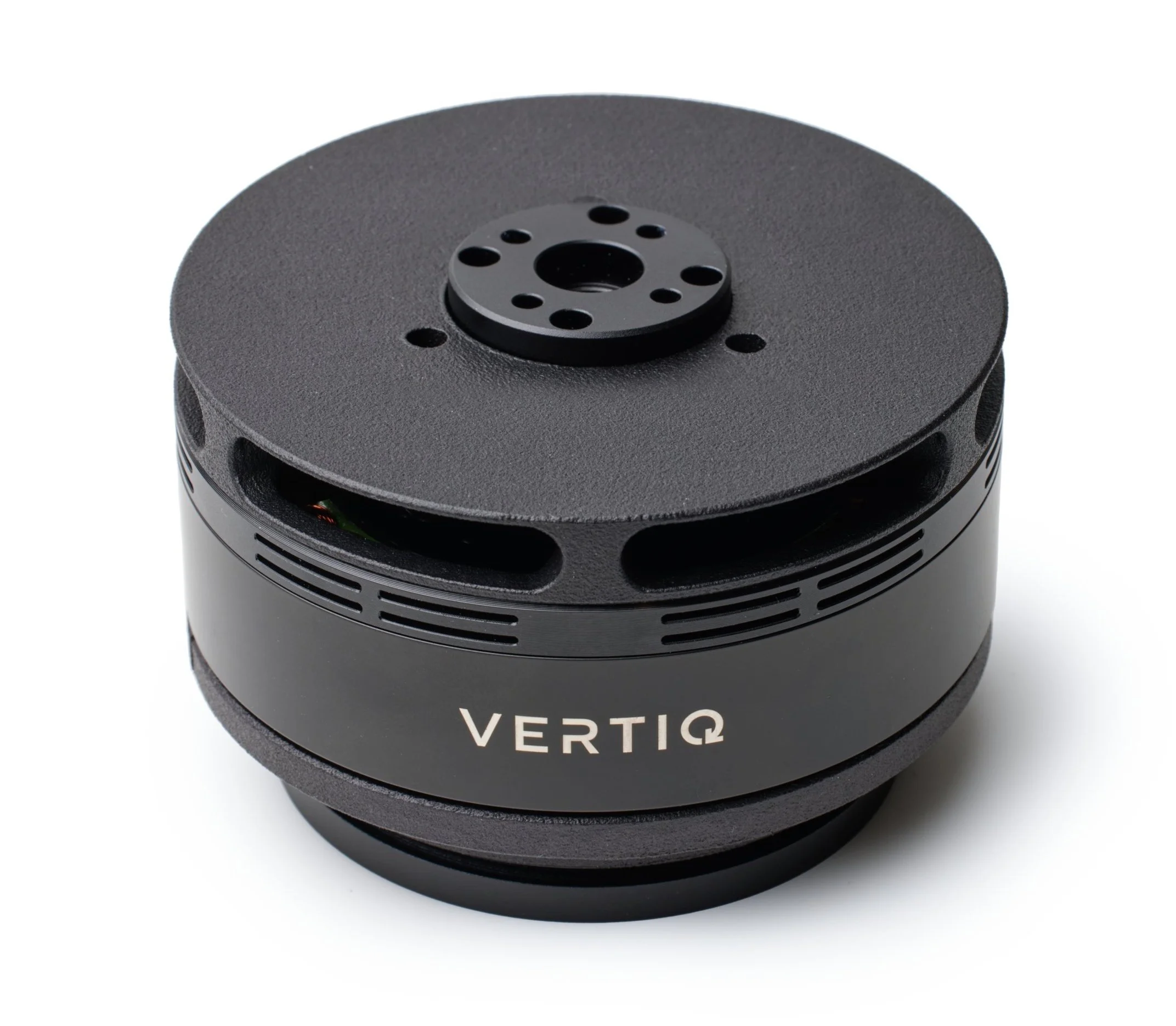

81-17 G2 Module

Product Description:

The 81-17 G2 Module is designed for industrial and defense drone propulsion. The module is a tightly integrated motor and 60A, 14S ESC with an embedded position sensor. It has the G2 modular capabilities to meet a wide range of vehicle requirements. With position sensing and advanced calibration and control algorithms, Vertiq has created the highest performance servo propulsion solution in its class.

Kv Options: 110

Commercial Launch in January 2025

〰️

Currently in Beta

〰️

Commercial Launch in January 2025 〰️ Currently in Beta 〰️

Module Details

81-17 G2 Module

    • Base Module Dimensions: 87.1mm diameter, 45.5mm height

    • Stator Dimensions: 81.0mm diameter, 17.0mm height

    • Base Module Weight: 525.5g

    • Voltage (Max # of Lipo Cells): 58.8 V (14S)

    • Lifetime: 2,000 hrs

  • Performance & Control

    • Velocity control with tunable PIDs & feed forward

    • Field Estimated Control: Best-in-class efficiency

    • 3D reversible, no delay while crossing zero

    • Industry-leading rise & response times

    • Regenerative & active braking

    • Precise propeller positioning

    • Active freewheeling

    • Fast FET switching, use of gate drivers

    System Integration

    • Motor with built-In ESC & position sensor

    • G2 modular capabilities

    • Communication protocols: DroneCAN, DShot, Standard PWM, Serial, & more

    • Compatible flight controllers: Ardupilot, PX4 & Betaflight

    Safety & Reliability

  • Latest Speed Firmware Releases:

    • Production Modules (coming soon)

    • Beta Modules

    Latest Servo Firmware Releases:

Advantages

Vertiq’s integrated motor and ESC design with position sensing gives it significant advantages over standard UAS propulsion systems. With rotor position information, tight motor-ESC pairing, and sophisticated motor control software, Vertiq optimizes propulsion performance and reliability.

Best-In-Class Power & Efficiency

Ultra Compact, Lightweight Design

Industry-Leading Response Times

Precision Speed & Position Control

Advanced Telemetry & Motor Health Monitoring

Meticulous Quality Control Testing

G2 Modularity

Vertiq has designed its second generation (G2) products to accommodate a wide range of add-ons. These add-ons include covers to increase IP rating, connectors to optimize vehicle integration, LEDs for vehicle certification, and more. They attach to the base module to provide a propulsion solution that is tailored to the exact needs of the aircraft. Please inquire for more information.

Product Tracking

Vertiq’s G2 products come equipped with product tracking, giving users access to their module’s unique serial ID, part number, and calibration data. Product tracking will benefit drone manufacturers seeking to improve their inventory management and quality assurance practices.
