Industrial Propulsion
For Commercial & Defense UAS
PRODUCTS
23-06 G1 Module
Motor Size: 23-06
ESC Rating: 2-6S
Propeller Range: 5-7”
Max Thrust: 650g
23-14 G1 Module
Motor Size: 23-14
ESC Rating: 2-6S
Propeller Range: 7-10”
Max Thrust: 1,000g
40-06 G2 Module
Motor Size: 40-06
ESC Rating: 2-6S
Propeller Range: 9-20”
Max Thrust: 2,100g
40-14 G2 Module
Motor Size: 40-14
ESC Rating: 2-6S
Propeller Range: 14-24”
Max Thrust: 2,200g
60-08 G2 Module
Motor Size: 60-08
ESC Rating: 12S
Propeller Range: 12-24”
Max Thrust: 5,500g
81-08 G2 Module
Motor Size: 81-08
ESC Rating: 14S
Propeller Range: 18-32”
Max Thrust: 9,000g
81-08 G1 Module
Motor Size: 81-08
ESC Rating: 12S
Propeller Range: 18-32”
Max Thrust: 8,600g
UP12
Propeller Diameter: 304.8mm
Mass: 32.6 g
Max Thrust: 700g
Pairs With: Vertiq 23-06 2200Kv or 23-14 920Kv Module with Pulsing Firmware
Technology

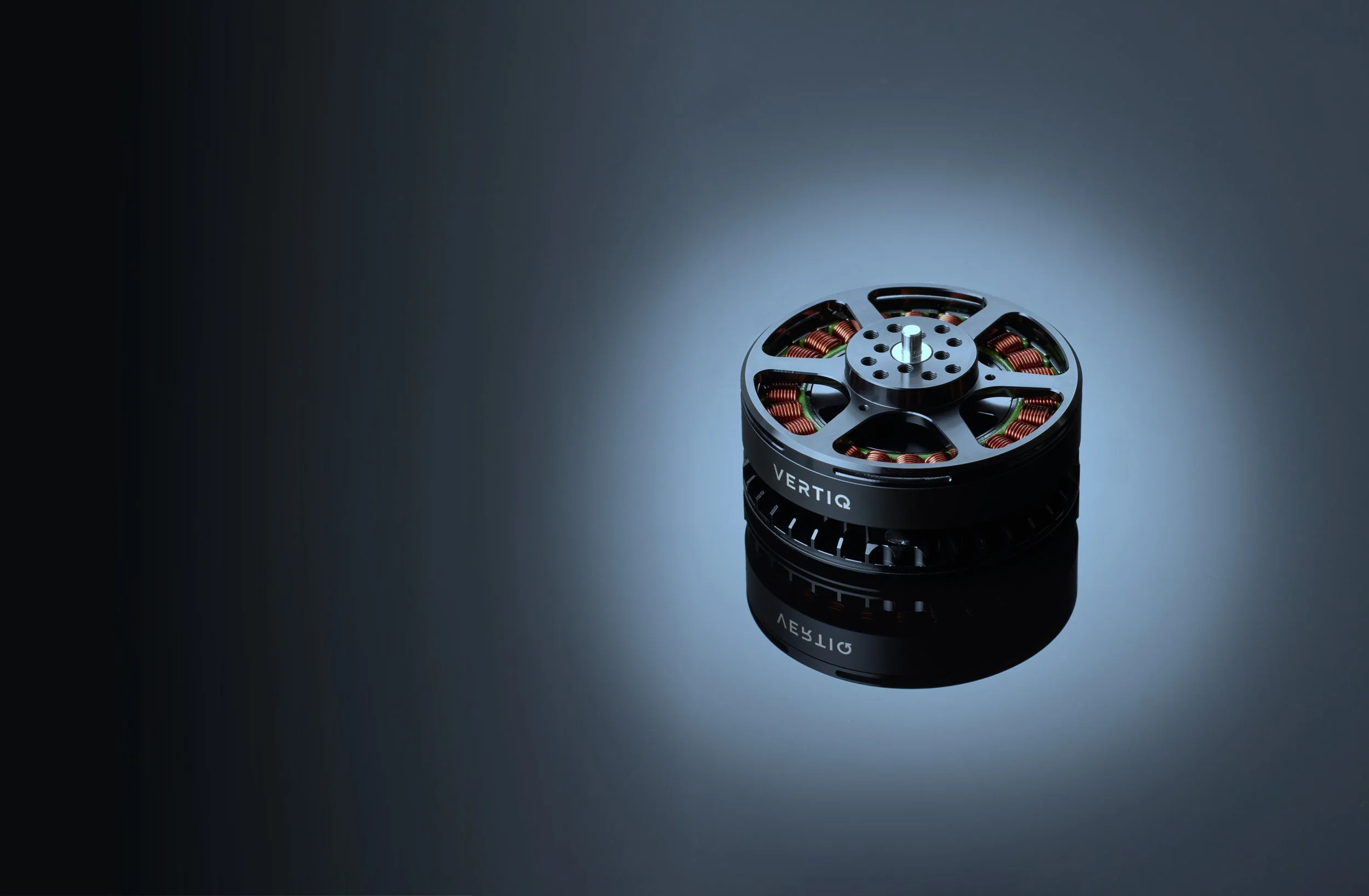

Vertiq makes high performance propulsion systems for commercial and defense UAS. The core design consists of a lightweight, tightly integrated motor and ESC with an embedded position sensor. With position sensing and Vertiq’s sophisticated motor calibration and control software, vehicles experience significant performance advantages.
Advantages
Vertiq’s integrated motor and ESC design with position sensing gives it significant advantages over standard UAS propulsion systems. With rotor position information, tight motor-ESC pairing, and sophisticated motor control software, Vertiq optimizes propulsion performance and reliability.
Best-In-Class Power & Efficiency
Ultra Compact, Lightweight Design
Industry-Leading Response Times
Precision Speed & Position Control
Advanced Telemetry & Motor Health Monitoring
Meticulous Quality Control Testing
Partnerships
Vertiq is your propulsion team. We provide you a motor & ESC that is tuned and tested for your vehicle. We also write custom control firmware to enhance your vehicle’s capabilities and develop custom accessories to make vehicle integration seamless.
